The AI operating layer for EPC firms.

A modular AI platform that reads, validates and acts on engineering drawings, tenders, vendor proposals and compliance documents — in real time. Built for EPC consultants and service providers.

Book a 30-day Pilot Explore the Platform
GMP / FDA CompliantMulti-Hub PlatformRAG + LLMPharma-GradeAudit-Ready
epcfluxai.app / dashboard

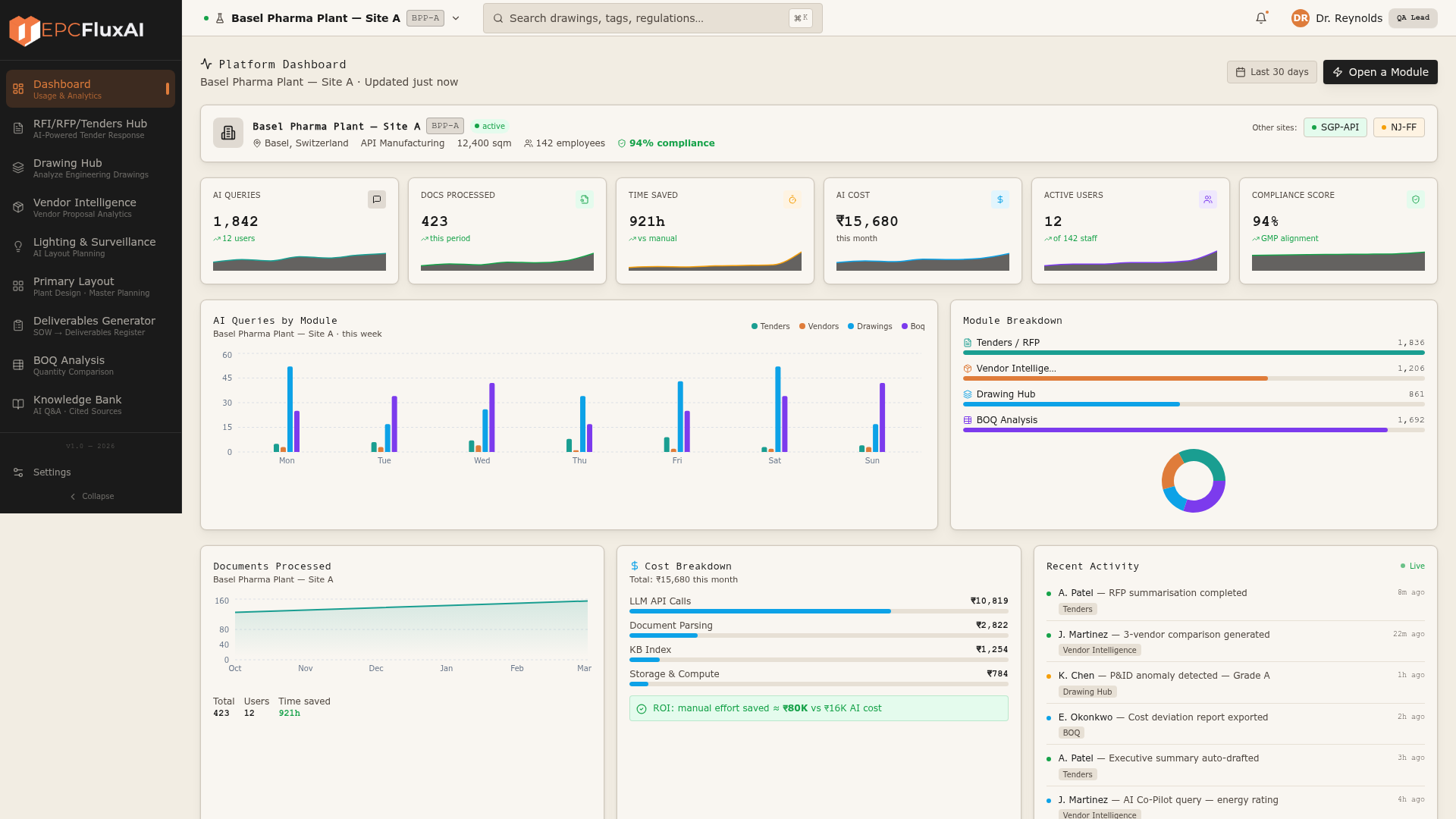

EPC FluxAI Dashboard

70%

Drawing review time saved

5×

Faster tender response

94%

GMP compliance score

921h

Engineer hours / month

§ 02 · The Problem

The world runs on documents. But they don't talk to each other.

01

Contracts

Live in legal's drive. Terms rediscovered every renewal.

02

Drawings

Sit in a CAD vault. Changes ripple to specs only when remembered.

03

Quotes

Arrive as PDFs and emails. Compared in spreadsheets, by hand.

04

Compliance

Lives in audit binders. Traceability is a scramble.

A $2M RFQ moves through seven tools and four teams. No single source of truth. Approvals stall. Vendor comparisons rebuilt every project.

§ 03 · The Workflow

From document chaos to grounded output.

Engineering documents flow through your standards and your workflows — emerging as validations, compliance checks, comparisons and generated deliverables you can trust.

01 · Ingest
Documents & Drawings
Tenders, P&IDs, BOQs, vendor docs
P&IDTenderBOQVendor PDF
02 · Ground
References & Standards
Codes, specs, internal playbooks
ASHRAENBCClient SpecPast Projects
03 · Orchestrate
Custom Workflows
Your review process, automated
RouteApproveEscalateNotify
04 · Deliver
Validate · Compare · Generate
Audit-ready outputs, every time
ValidationComplianceComparisonGeneration
Speed
Weeks of review compressed into minutes
Quality
Consistent, traceable, audit-ready output
Cost
Lower man-hours, fewer rework cycles
§ 04.5 · Real Drawings

Built on the documents your engineers actually ship.

P&IDs, airflow schematics, ceiling layouts, point-of-use diagrams — Flux ingests them at full fidelity, then automates validation, BOM extraction and compliance scoring.

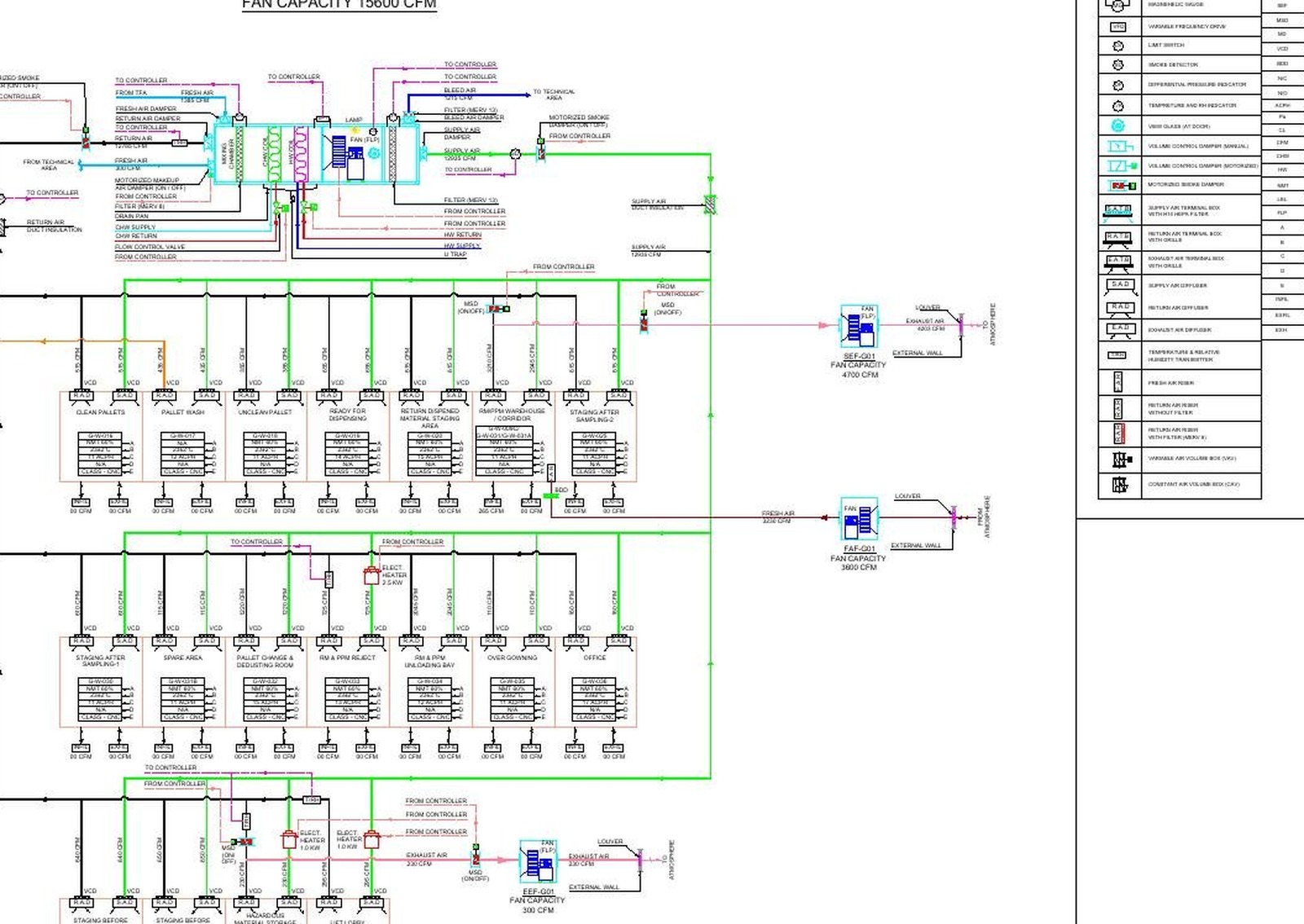

AHU-G01 — Schematic Airflow Diagram
Validation01 / 04

AHU-G01 — Schematic Airflow Diagram

HVAC · 15,600 CFM · Multi Dosage Facility

→

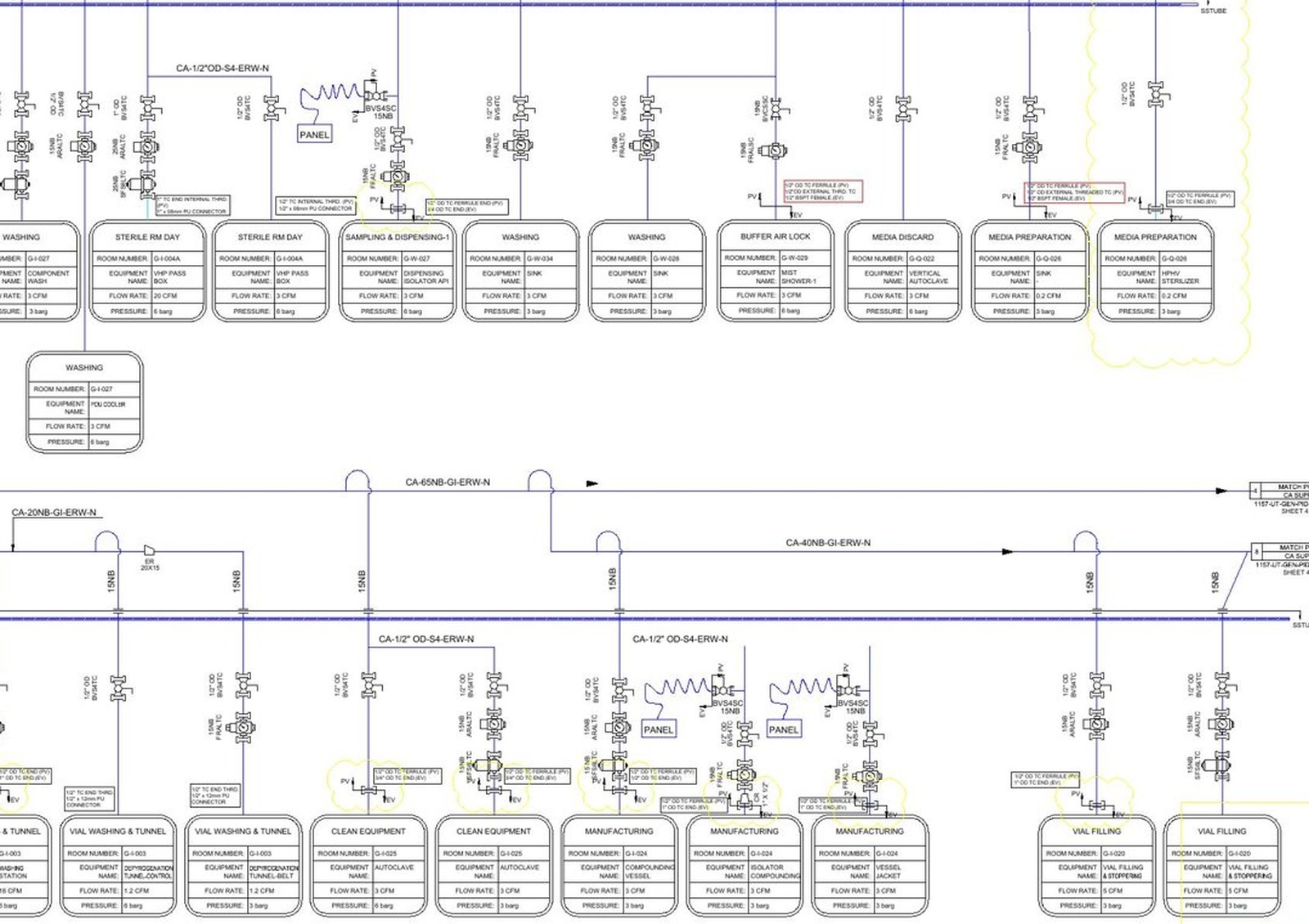

P&ID — Potable Water (Sheet 3 of 6)
Tag Cross-Ref02 / 04

P&ID — Potable Water (Sheet 3 of 6)

Utilities · Oncology OSD & Sterile Formulation

→

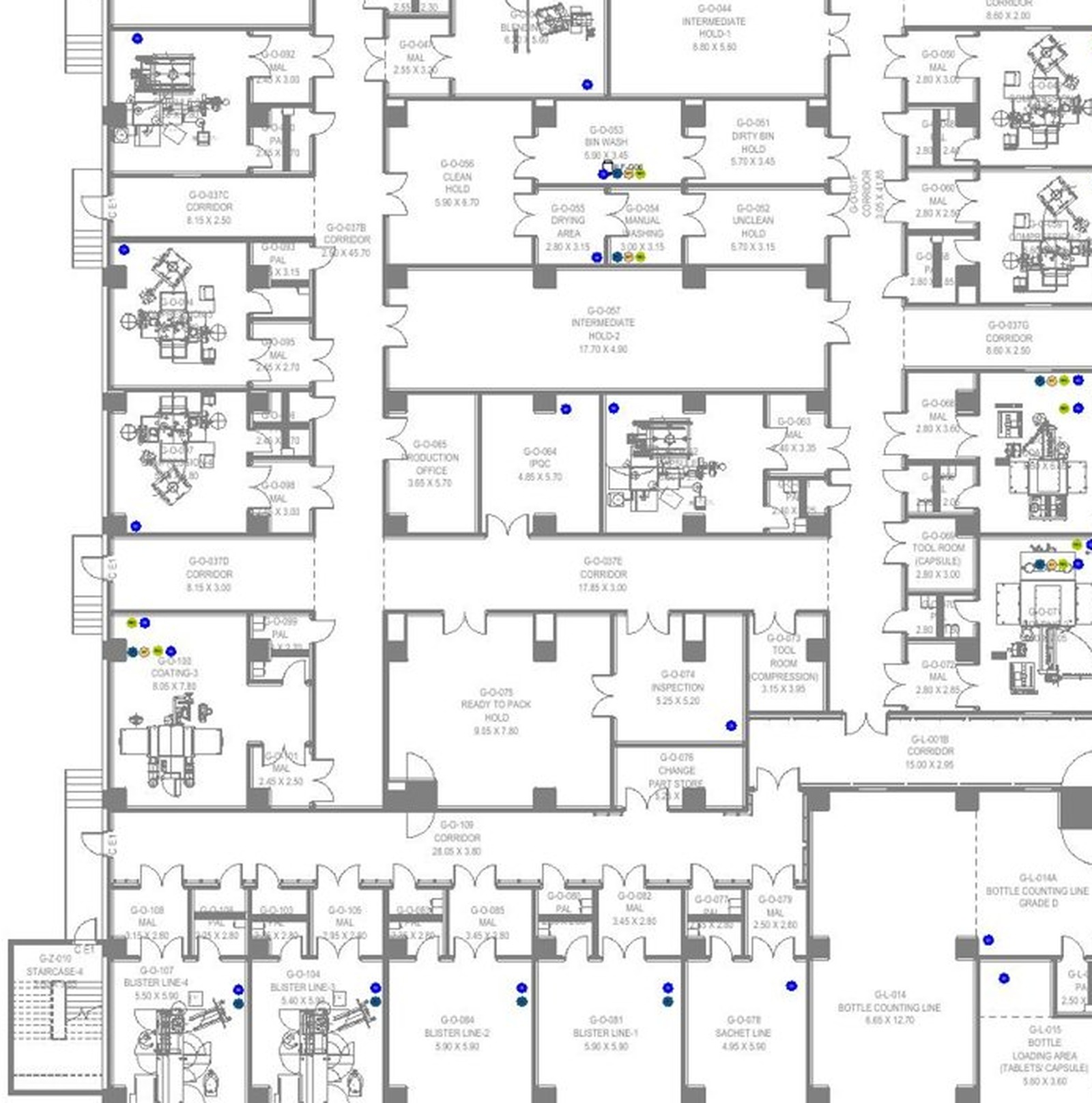

Point of Use Layout
BOM03 / 04

Point of Use Layout

Service distribution · clean utilities

→

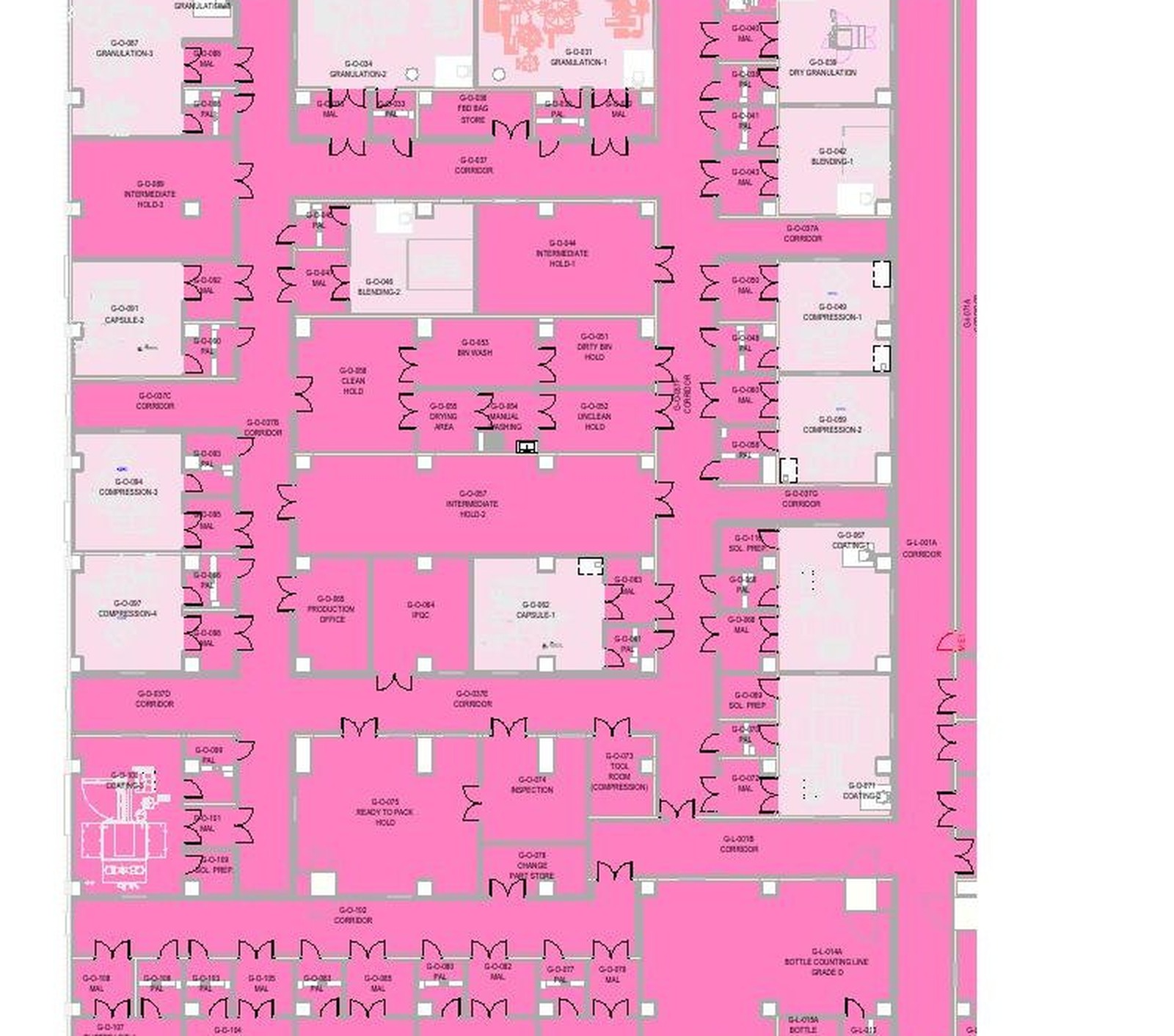

Ceiling Finish Layout
Compliance04 / 04

Ceiling Finish Layout

Architectural · GMP zoning

→

Symbols detected

Pumps · valves · dampers · diffusers · sensors

Tags cross-referenced

Pipe IDs · room numbers · equipment codes

Compliance scored

WHO GMP · EU Annex 1 · FDA 21 CFR · ICH Q7

§ 03 · Architecture

Five layers.
One platform.

Each layer is replaceable. Each layer is observable. Each layer is deployable on its own — a modular, cloud-native architecture built for pharmaceutical-grade reliability.

GPT-4oGeminiClaudeSupabaseRechartsTanStack
  1. A

    Input

    Contracts · drawings · invoices · vendor submissions · compliance files

    01 / 05
  2. B

    AI Processing

    OCR + LLM · classification · context-aware extraction · RAG knowledge base

    02 / 05
  3. C

    Intelligence

    Vendor scoring · cost comparison · risk analysis · recommendations

    03 / 05
  4. D

    Workflow

    RFQ flows · approval chains · exception handling · notifications

    04 / 05
  5. E

    Governance

    Full traceability · audit logs · reference mapping · audit-ready output

    05 / 05
§ 04 · Core Modules

Six intelligent hubs.

Each hub is a self-contained AI workflow engine with specialised knowledge, prompts and output formats — built for engineering teams who can't wait.

11 use cases

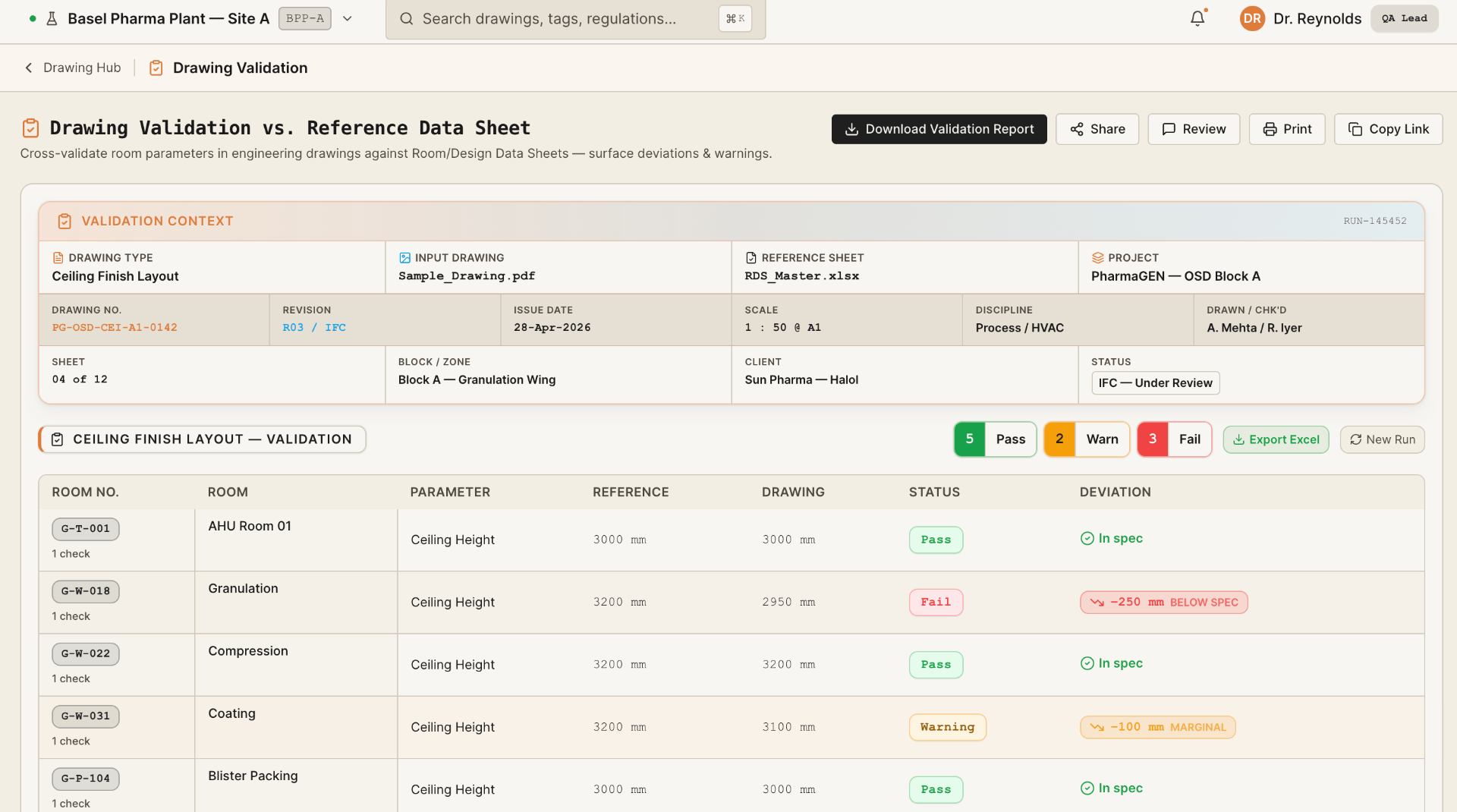

Drawing Hub

Multimodal P&ID, GA, MEP analysis. Symbol detection, GMP compliance, tag cross-ref, version diff.

01
Drawing Hub
6 use cases

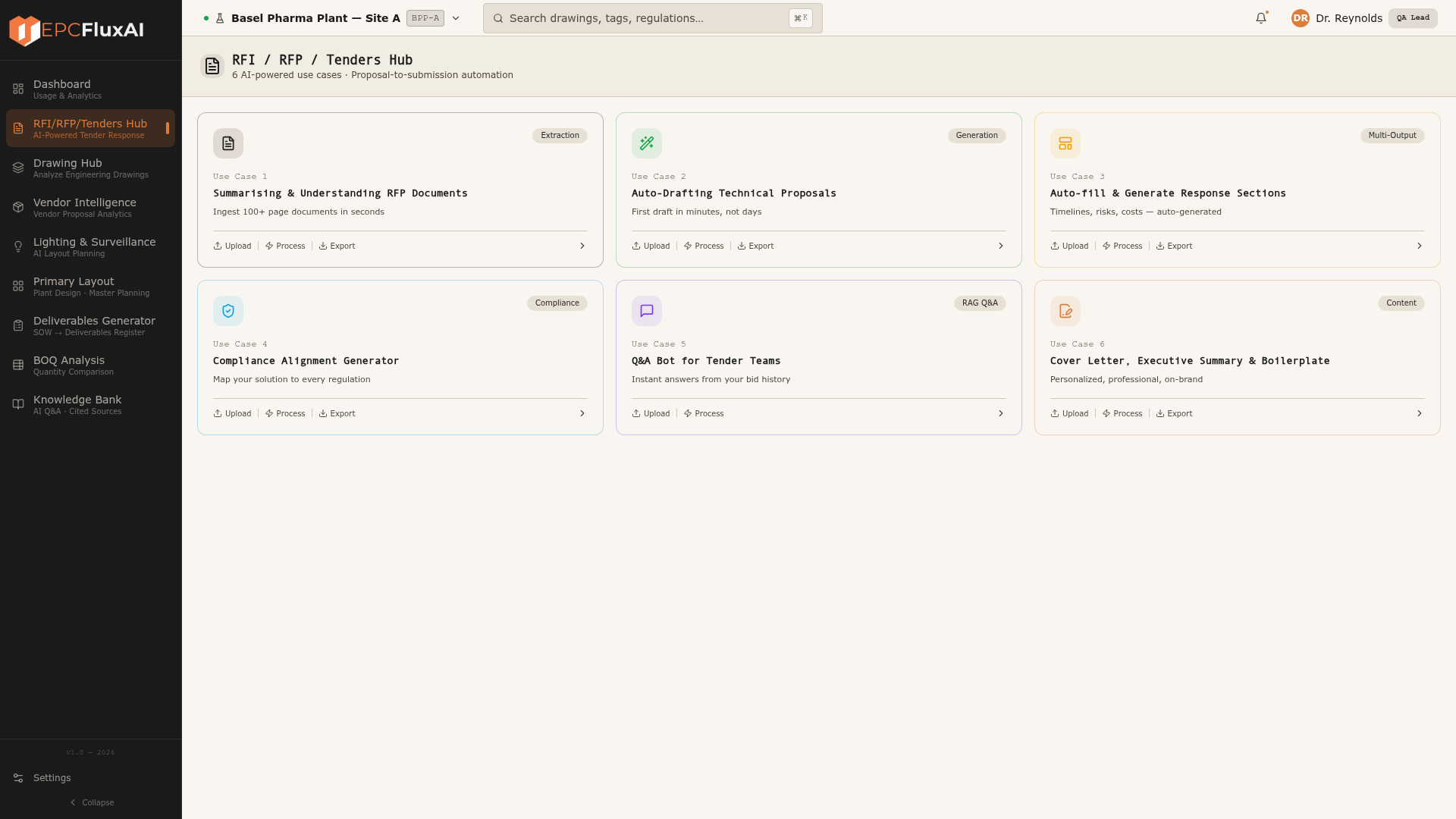

RFI / RFP / Tenders Hub

AI-powered proposal automation. RFP summarise, auto-draft, RAG Q&A bot.

02
RFI / RFP / Tenders Hub

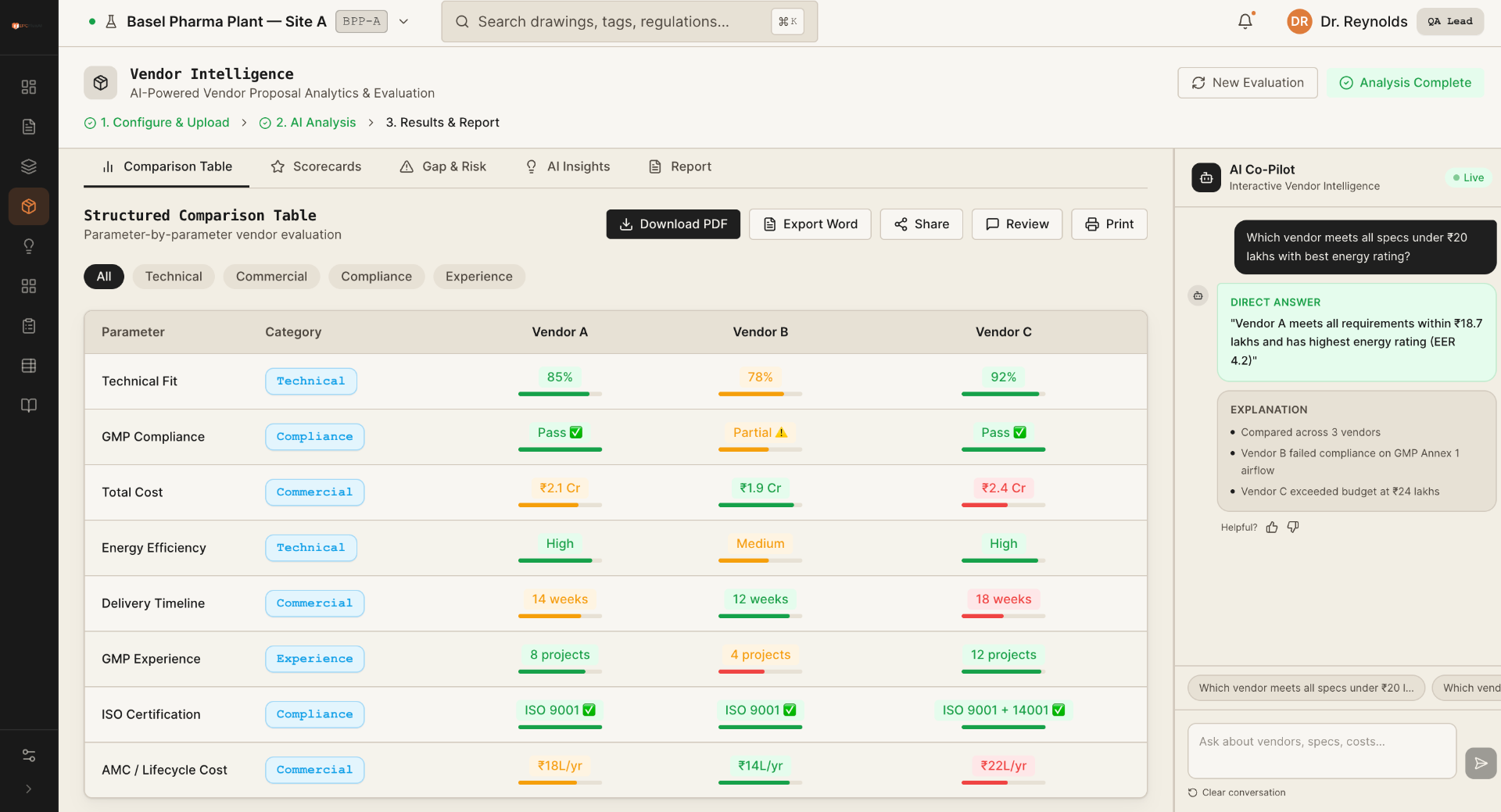

5 use cases

Vendor Intelligence

Vendor proposal analytics & scoring. 3-vendor compare, compliance score, risk flags.

03
Vendor Intelligence
4 use cases

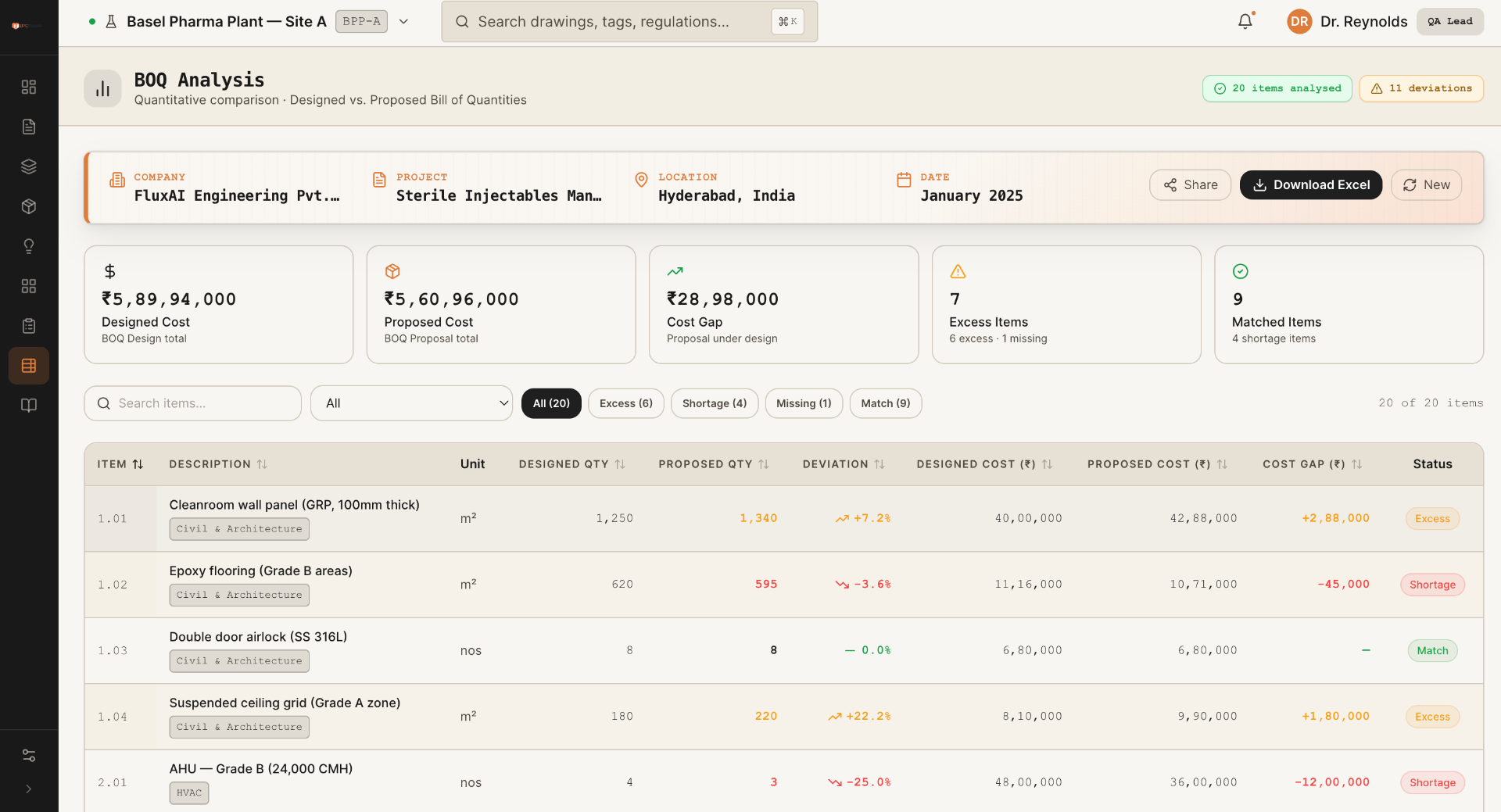

BOQ Analysis

Quantity & cost intelligence. Item extraction, cross-compare, anomaly detection.

04
BOQ Analysis
8 use cases

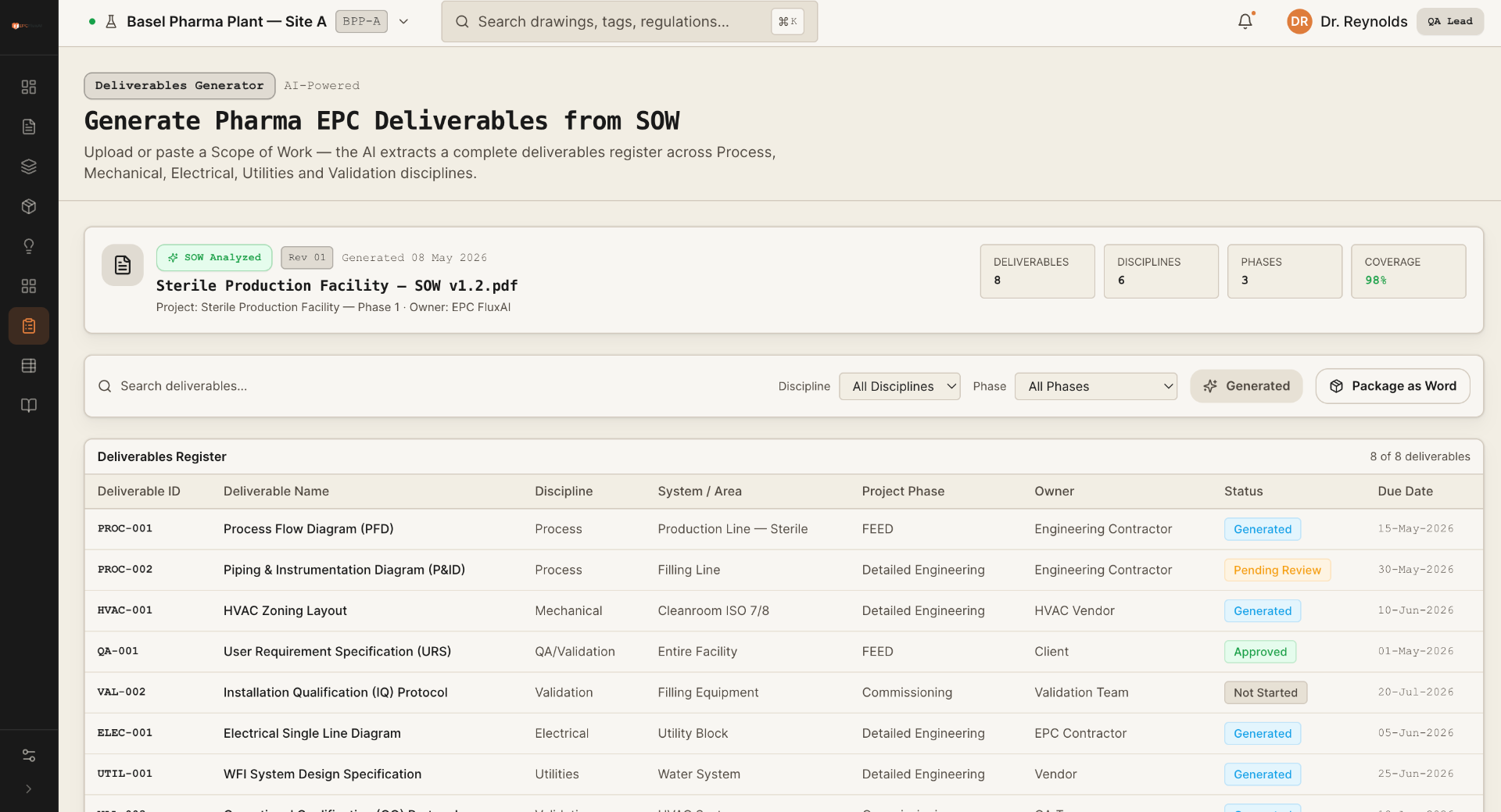

Deliverables Generator

Generate Pharma EPC deliverables register from SOW across Process, Mechanical, Electrical, Utilities & Validation.

05
Deliverables Generator
7 use cases

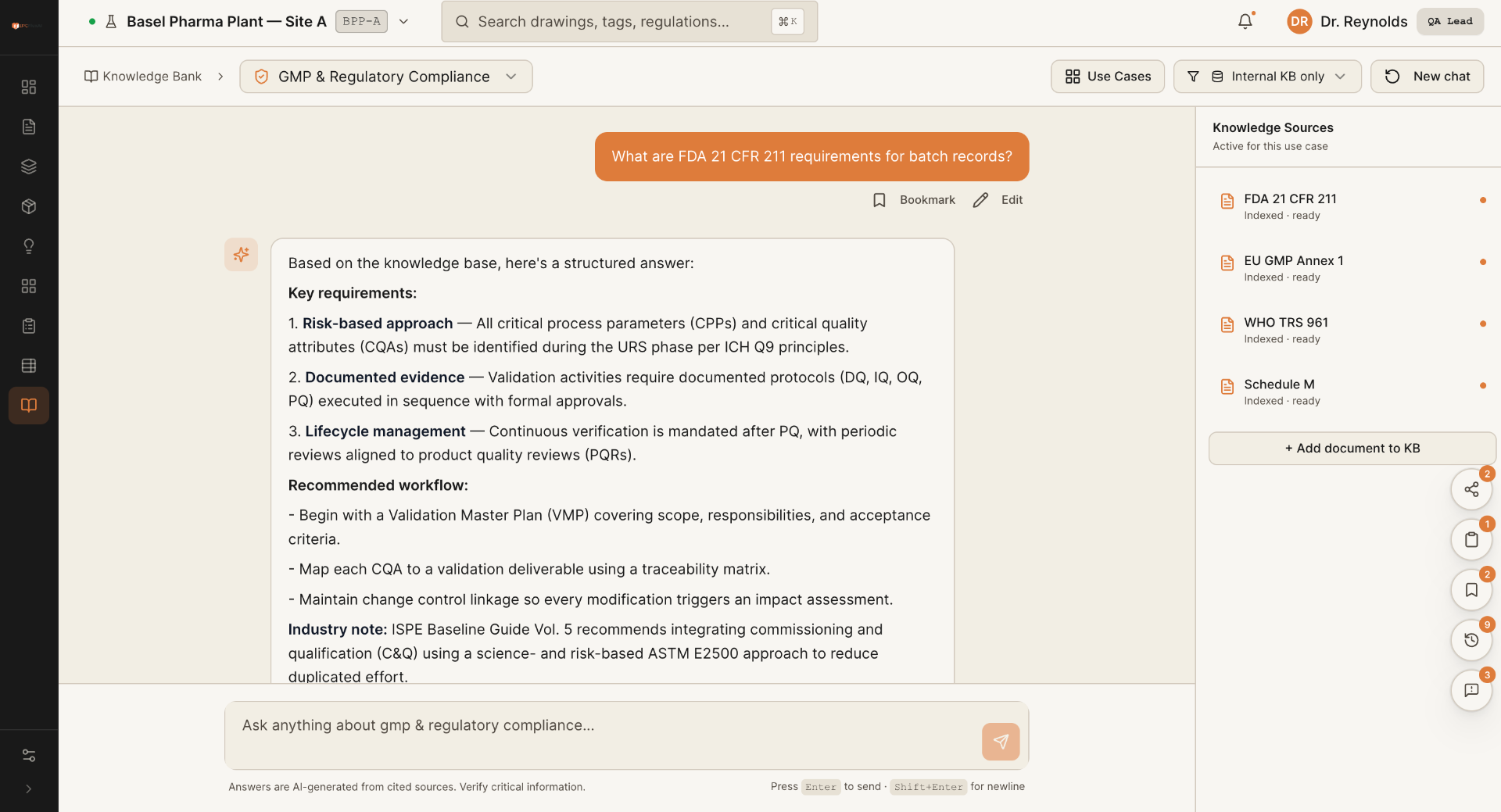

Knowledge Bank

Project-grounded RAG over GMP/FDA/EU regulations & internal SOPs. Cited answers from your standards.

06
Knowledge Bank
§ 08 · Next Step

Pick a document-heavy workflow.
We'll show it running in 30 days.

  • 01 ·Pilot — one workflow, one BU, three milestones
  • 02 ·Measure — cycle time, accuracy, traceability vs baseline
  • 03 ·Scale — module-by-module across the platform
Book a Pilot Browse all 35+ use cases
